AVAILABLE NOW
EUR 149,000
One published price for the base set,
including one bracket configuration for one payload. excl. tax.
A PLATFORM OF ITS OWN

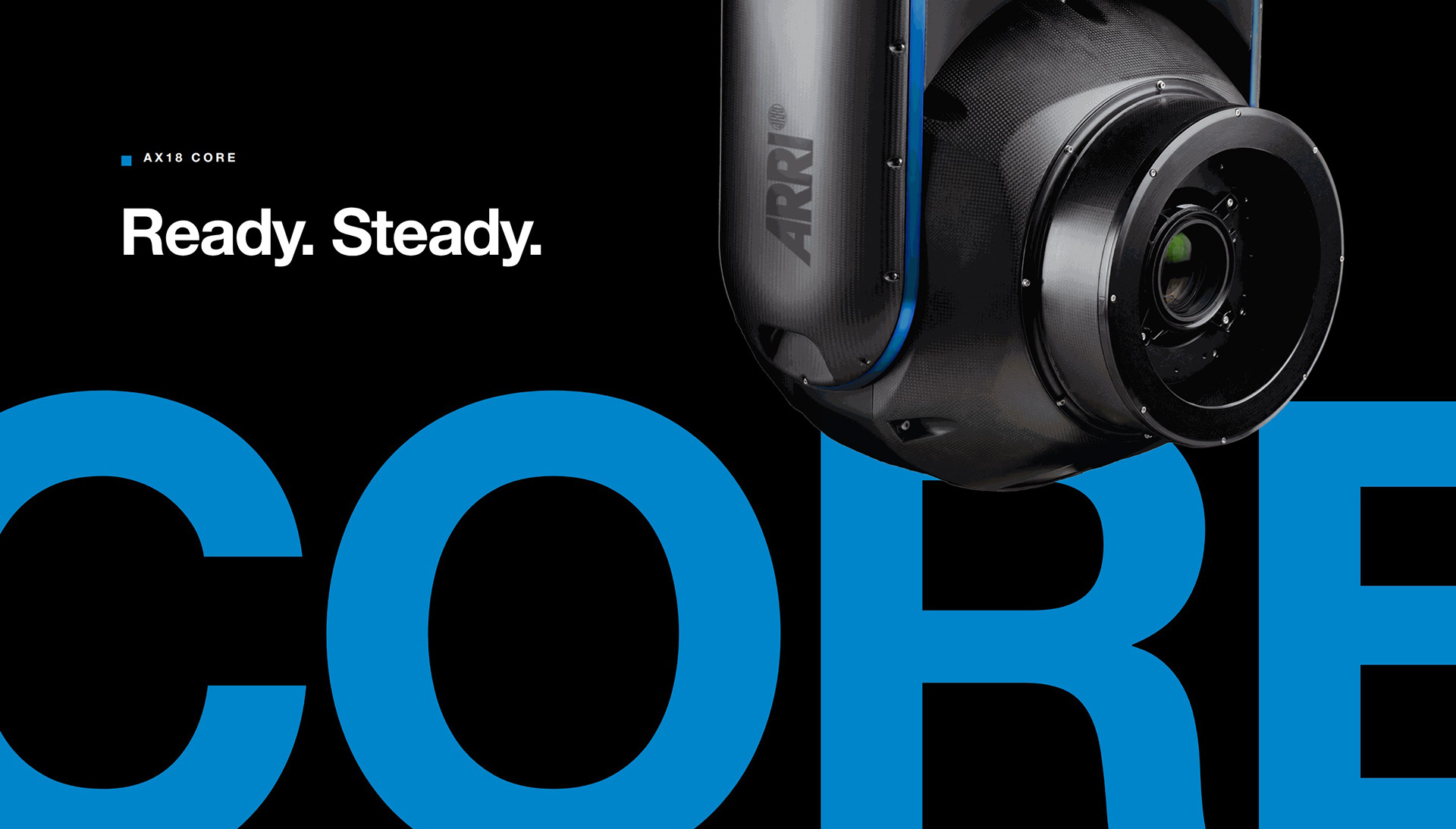

The core of stabilization.
Every decision in the Core follows the same brief: hold the picture steady where the platform moves fast, shakes hard and gets wet.
A closed IP65 body. Five axes. Ethernet control. A payload range built around the cameras and lenses those productions actually carry.
5 AXIS IP65 SEALED 30x BROADCAST ZOOM 600mm CINE ZOOM 300km/h SPEED
Sealed
– against the weather.

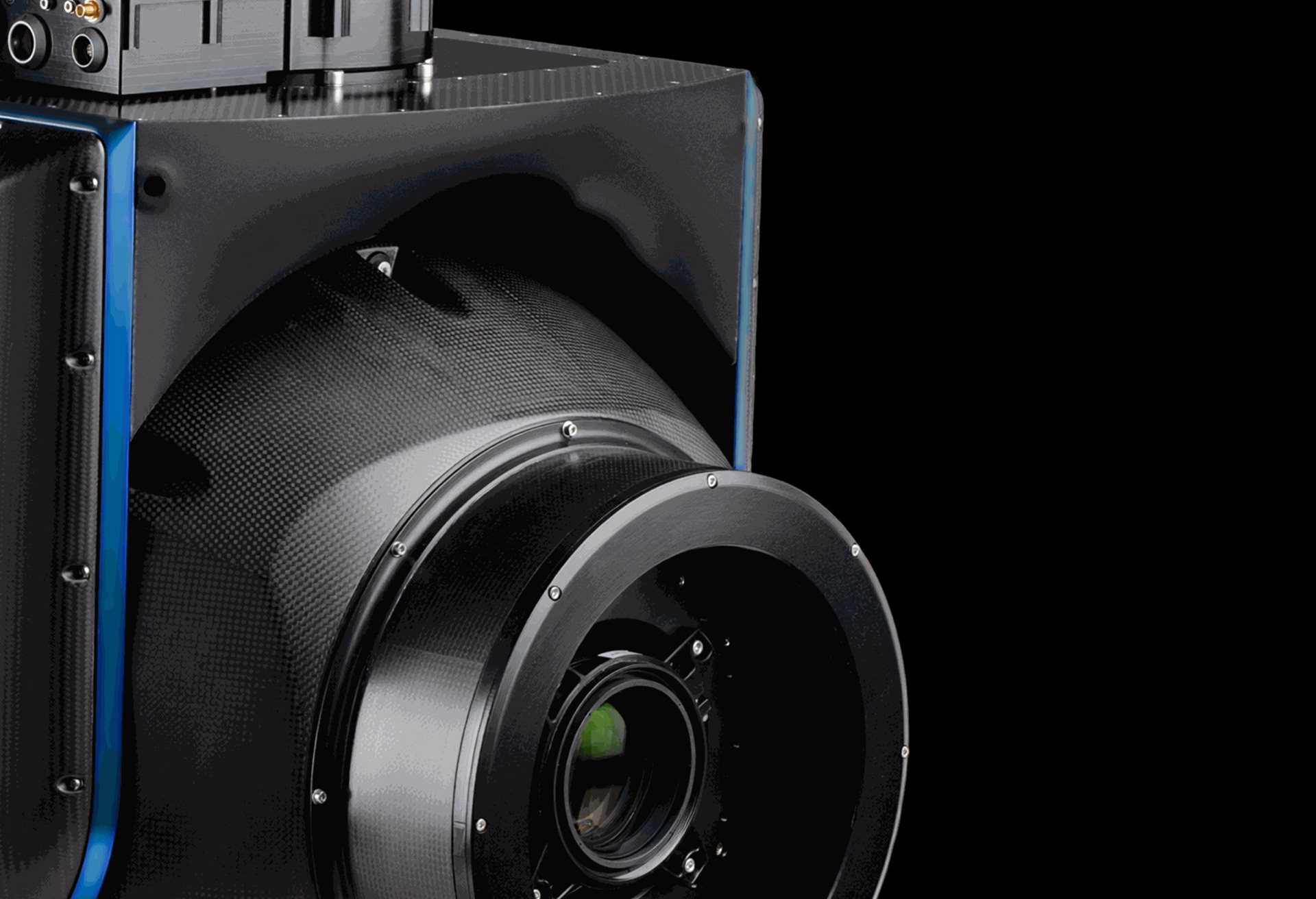

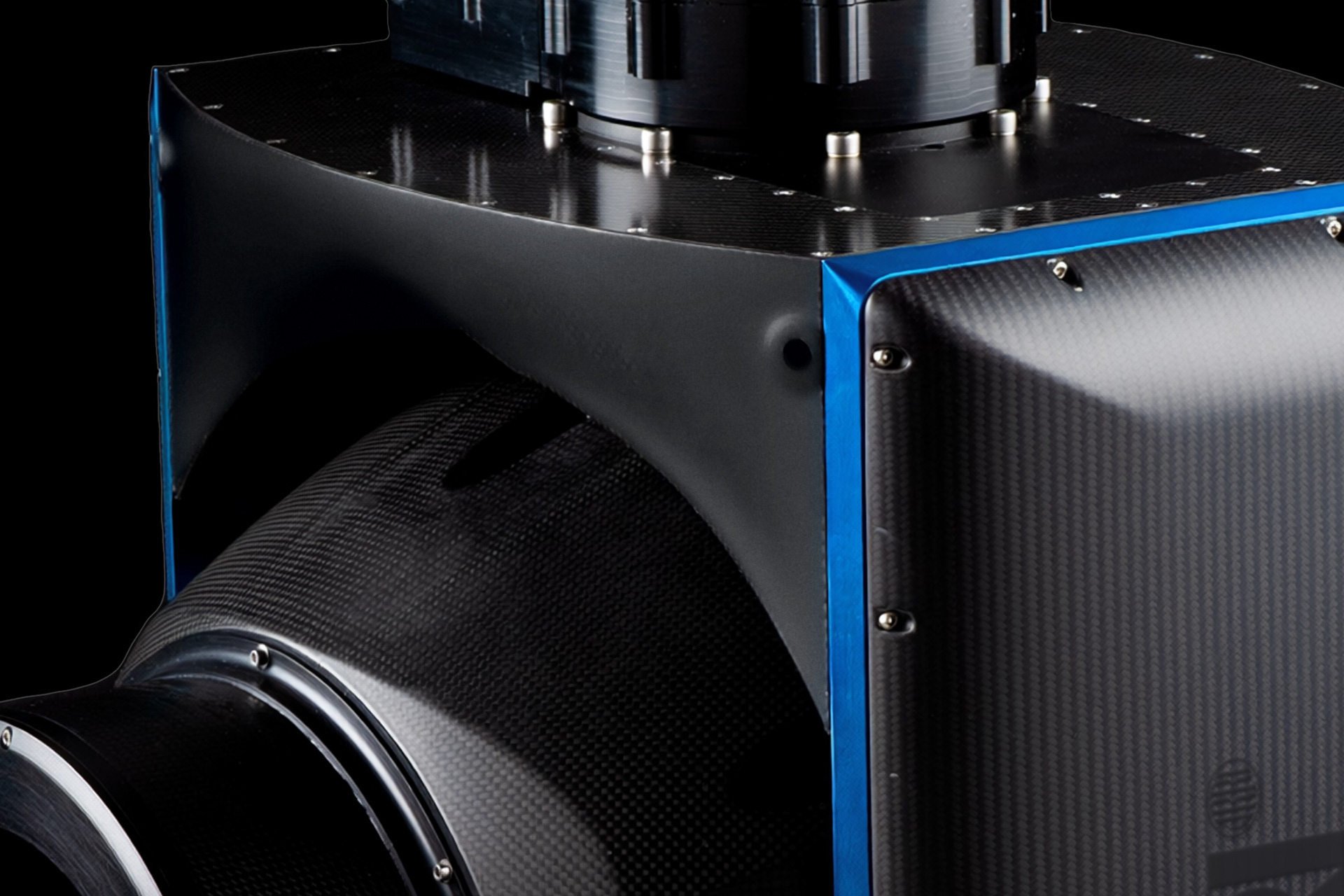

A closed IP65 housing instead of an open head. Rain, spray and dust on a crane, a camera car or a boat do not end the shooting day. Where competitors cover up and wait, the Core keeps rolling.
Five axes
– not three.
Two more axes than the open heads in its class. On fast vehicles and on platforms with high-frequency movement that difference shows up in the picture, not just in the data sheet.
Remote – wherever you are.
Ethernet-based control over long cable runs, straightforward to integrate into modern IP production networks. The operator sits where the job needs them, not where the cable ends.
AX18 CORE details:
Weight & dimensions
Turret
Empty weight: 26 kgs | 57 lbs
Incl. payload: 30 - 60 kgs | 66 - 130 lbs
Dimensions: 60 x 48 x 48 cm | 23 x 19 x 19 in
Turret
Empty weight: 26 kgs | 57 lbs
Incl. payload: 30 - 60 kgs | 66 - 130 lbs
Dimensions: 60 x 48 x 48 cm | 23 x 19 x 19 in
Operating panel
weight: 2,8 kgs | 6.2 lbs
Dimensions: 13 x 47 x 26 cm | 5 x 19 x 10 in
weight: 2,8 kgs | 6.2 lbs
Dimensions: 13 x 47 x 26 cm | 5 x 19 x 10 in
Junction box
Weight: 3,6 kgs | 8 lbs
Dimensions: 10 x 28 x 25 cm | 4 x 11 x 10 in
Weight: 3,6 kgs | 8 lbs
Dimensions: 10 x 28 x 25 cm | 4 x 11 x 10 in
Gimbal transport box
Dimensions: 81 x 67 x 77 cm | 32 x 26 x 30 in
Dimensions: 81 x 67 x 77 cm | 32 x 26 x 30 in
Accessory transport box
Dimensions: 82 x 59 x 39 cm | 32 x 23 x 16 in
Dimensions: 82 x 59 x 39 cm | 32 x 23 x 16 in
Movement & power
Turret movement range
PAN: 360° (continuous)
TILT: 230° (symmetrical)
ROLL: +/- 100° roll
Turret movement range
PAN: 360° (continuous)
TILT: 230° (symmetrical)
ROLL: +/- 100° roll
Turret movement speed
PAN: 0 - 130 °/sec
PAN: 0 - 130 °/sec
TILT: 0 - 130 °/sec
(different gear-box options)
Environmental
MAX. SPEED: 160 kts / 300 km/h
Operating temperature: -20 to +50 °C | -4 to +122 °F
MAX. SPEED: 160 kts / 300 km/h
Operating temperature: -20 to +50 °C | -4 to +122 °F
Power requirements
VOLTAGE: 20 - 34 V
PEAK CURRENT: 20A@24V
TYPICAL CURRENT: 7A@24V
QUIESCENT CURRENT: 2A@24V
VOLTAGE: 20 - 34 V
PEAK CURRENT: 20A@24V
TYPICAL CURRENT: 7A@24V
QUIESCENT CURRENT: 2A@24V
Connectors
Turret connectors
Hybrid fiber and power port
AUX input power port
AUX data port
GPS antenna port
AUX input power port
AUX data port
GPS antenna port
JBX-2 connectors
10/100/1000 Ethernet RJ45 port
AUX output power port
AUX data port
SDI 1.5G / 3G / 6G / 12G BNC output
Fiber-optic port for payload
AUX output power port
AUX data port
SDI 1.5G / 3G / 6G / 12G BNC output
Fiber-optic port for payload
GCU-1 connectors
10 / 100 / 1000 Ethernet RJ45 port.
AUX output power port (2x)
AUX USB port
10 / 100 / 1000 Ethernet RJ45 port.
AUX output power port (2x)
AUX USB port
Cameras & lenses
Broadcast cameras
Sony HDC-P1/a, P43, P50(A)
Sony HXC-P70
Grass Valley LDX C HD/4K Series
Panasonic AK-UB300 4K
Ikegami HDL Series, UHL-43, UHL-F4000, UHL-X40
Sony HXC-P70
Grass Valley LDX C HD/4K Series
Panasonic AK-UB300 4K
Ikegami HDL Series, UHL-43, UHL-F4000, UHL-X40
Broadcast lenses
Canon HJ18ex Series
Canon HJ18ex Series
Canon HJ24ex Series
Canon CJ12ex /14ex /15ex (UHD) Series
Canon CJ20ex /25ex /27ex (UHD) Series
Fujinon HA25x Series
Fujinon UA13x /14x /18x (UHD) Series
Fujinon UA22x /23x /24x (UHD) Series
Fujinon UA30x (UHD) Series
CINE cameras
ARRI ALEXA 35, Mini/LF
ARRI ALEXA 35, Mini/LF
ARRI ALEXA 265
RED DSMC-1, DSMC-2, DSMC-3
RED Komodo
Black Magic Ursa Mini/Pro
Sony PMW-F55
Sony Venice
RED DSMC-1, DSMC-2, DSMC-3
RED Komodo
Black Magic Ursa Mini/Pro
Sony PMW-F55
Sony Venice
CINE lenses
ARRI Alura 15.5-45
ARRI Alura 30-80
Fujinon HK, ZK, XK Series
Angénieux Optimo 15-40, 28-76, 45-120 & 25-250
Angénieux Style 16-40 & 30-76
Canon CN7x17, CN10x25, CN-E30-105, CN 30-300, CS 50-1000
ARRI Alura 30-80
Fujinon HK, ZK, XK Series
Angénieux Optimo 15-40, 28-76, 45-120 & 25-250
Angénieux Style 16-40 & 30-76
Canon CN7x17, CN10x25, CN-E30-105, CN 30-300, CS 50-1000
Zeiss CZ.2 28-80, 70-200
Your camera or lens is not on the list? The list shows what is already integrated, not what is possible. Most broadcast and cine combinations can be added, and new ones are integrated on request.
TWO SYSTEMS, TWO JOBS
AX18
Airborne work and long tele. Fiber-optic gyro, carbon construction, broadcast zoom well beyond 45x, helicopter and aerial platforms where the smallest drift is visible.
AX18 CORE
Ground and marine. Vehicles, cranes, telescopic cranes, cable cams and boats. Broadcast up to 30x and the full range of cinema focal lengths.
BROADCAST · CINEMA · VEHICLE · CRANE · CABLE CAM · MARINE
